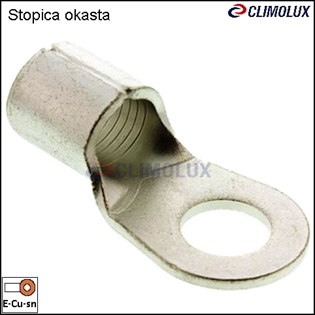

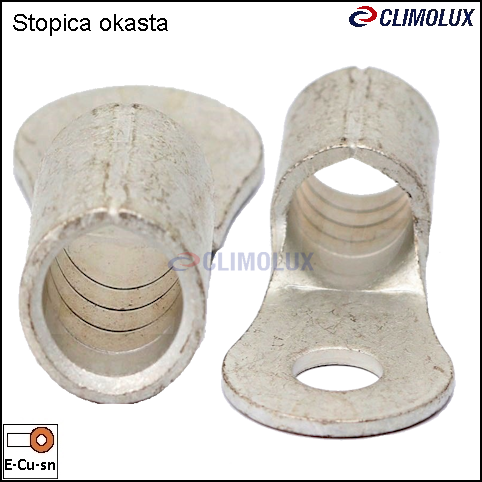

Ring terminal uninsulated 95mm2 M16

4,29 €

Ring terminal uninsulated  98mm2 M16

item-number:  490050

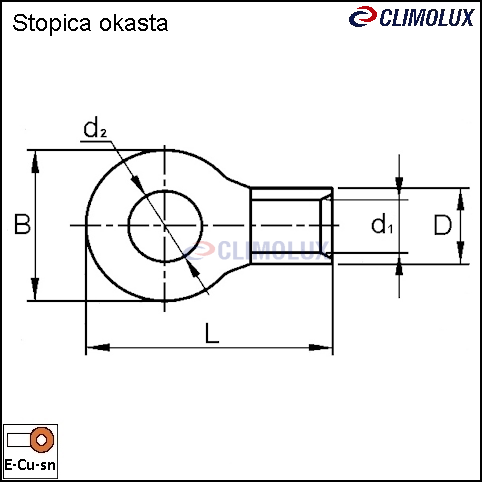

SKU

d1

(mm)

d2

(mm)

D

(mm)

L

(mm)

B

(mm)

490050

14,5

17,0

20,5

58,0

27,8

120 - 150

95 - 120

50 - 70


-Ring terminal are made of tinned copper,

Ring terminal type cable lugs are suitable for connecting wires of different types and cross sections.

The compounds were inseparable. During the merger should be taken that the material guide (copper, aluminum)ring treminal of the same material, so as to prevent harmful effects of the transition resistance and electrochemical potential difference, and thus overheating connection points.
