Positions switch LSME04 IP65

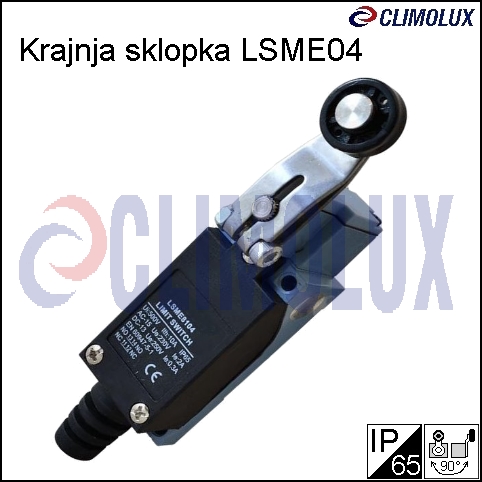

Positions switch LSME04 IP65 with Roller lever
item-number: 497205

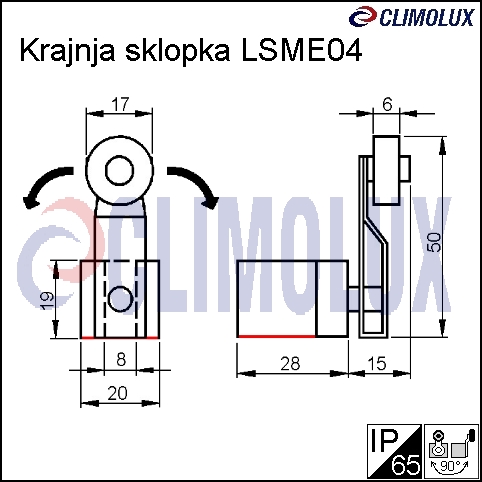

 Technical data: roller lever= 30mm,1xNO+1xNC, 2A/230V AC-15, 0,3A/250V DC-13,IP65

 - double contacts          - massive construction          - plastic and aluminum die-cast          - water- and oilproof

 - double spring mechanism          - long lifetime          - easy wirin

 - Width sensor:                                                  29 mm

 - Height of sensor:                                             24.8 mm

 - Length of sensor:                                            63.9 mm

 - Rated operation current Ie at AC-15, 230 V:       2 A

 - Rated operation current Ie at DC-13, 125 V:      0.3 A

 - Switching function:                                         Slow-action switch

 - Number of contacts as change-over contact:      1

 - Material housing:                                            metal

 - Type of control element:                                 Rotary lever

 - Ambient temperature during operating:            -25 -55 °C

 - Degree of protection (IP):                               IP65

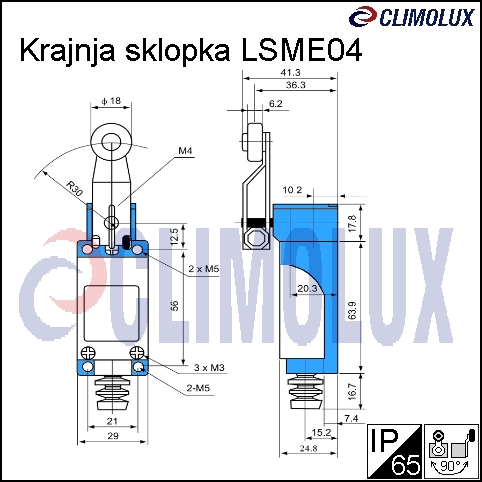

Case dimensions: W: 29 mm                    H : 24,8 mm               L : 63,9 mm
