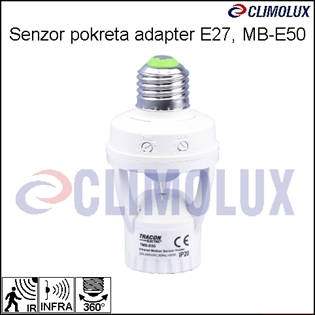

Motion sensor adapter MB-E27I for E27 sockets, PIR
item-number: 495421![](https://i.imgur.com/MEXFKyO.jpg)
![](https://i.imgur.com/nJj9N1u.jpg)
![](https://i.imgur.com/BhQ67ye.jpg)
![](https://i.imgur.com/Ct8Vj8Y.jpg)
![](https://i.imgur.com/iIeNINk.jpg)
![](https://i.imgur.com/Z74fzQd.jpg)
![](https://i.imgur.com/QQlaA3C.jpg)
![](https://i.imgur.com/nRYivu9.jpg)
![](https://i.imgur.com/CoQuIzQ.jpg)
![](https://i.imgur.com/tCUT9id.jpg)
product code
|
![](https://i.imgur.com/erjD0B0.jpg) | ![](https://i.imgur.com/eNoLNyI.jpg) | ![](https://i.imgur.com/laRgbrA.jpg) | ![](https://i.imgur.com/XLoiGxY.jpg) |
![](https://i.imgur.com/vVr1chY.jpg)
|
![](https://i.imgur.com/Gu1LTfy.jpg)
|
495421 |
220-240 V AC | 120°
| 3-2000 lux | 10s...5min |
IP 20
|
127xØ64,5mm
|
![](http://i.imgur.com/0ms7W8p.jpg)
light sources | ![](https://i.imgur.com/dtF9eqW.jpg)
|
![](https://i.imgur.com/CNURecJ.jpg)
|
![](https://i.imgur.com/544Csrb.jpg)
|
![](https://i.imgur.com/H3JBxG0.jpg)
| ![](https://i.imgur.com/RyjqEYy.jpg) | ![](https://i.imgur.com/jQyrh8B.jpg) | ![](https://i.imgur.com/EUeOwIv.jpg)
|
maximum plugged power | 60W
|
60W
|
30W
|
30W
| 2,0 - 3,5 m
| < 6m m
| 0,6
do 1,5 m/s |
:
Similar products:
These special movement sensors can be fitted into ordinary E27 type sockets, i.e.users need not care for ulterior modification of the lamp body. Just screw-in the sensor into the socket and the light source into the socket of the sensor. Due to the radar sensor technology,

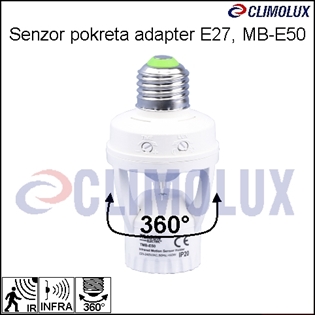

MB-E27R type sensors are able to detect movements through thin sheets of solid materials, i.e. lamp bulbs, whereas MB-E27Itype sensors use infrared technology, i.e. can only be used in free position.Time delay and switching threshold of environmental lighting as well as sensitivity of the MB-E27R type sensors are continuously adjustable.After installation into the E27 socket, MB-E27I type sensors can be rotated 350°, to place the window as desired.
Tehnical data:
Power consumption |
Motion speed sensitivity | Time delay | Ambient light |
Operation temperature |

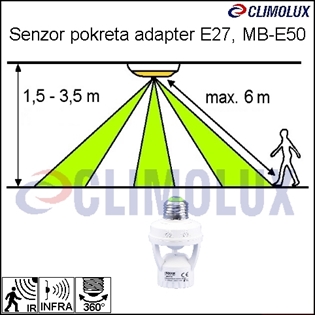

Mounting height |
0,45W |
0,6… 1,5 m/s | 10s – 5 min | 3– 2000 lux(adjustable) |
-20°C - +40 °C |
0,6 do 1,5 m/s |
The passive infrared motion sensors (PIR) are sensing the shift of heat
emitted by creatures and in case of appropriate value of shift the relay
inside of sensor switch. Because of this operational method the sensor
have to see the moving object otherwise the relay will not switch.
The sensitivity of device for transverse movements is higher, for
opposite movements is smaller so the devices including one sensor are
recommended to install parallel with the expected direction of motion.
