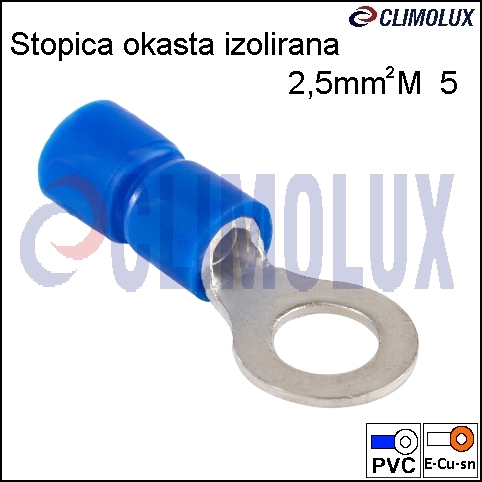

Ring terminal insulated 2,5mm2 M5 blue

Ring terminal insulated  2,5mm² M5 blue

product code: 490121

From tinned copper, Insulation material PVC. Ambient temperature: -55 °C…+125 °C

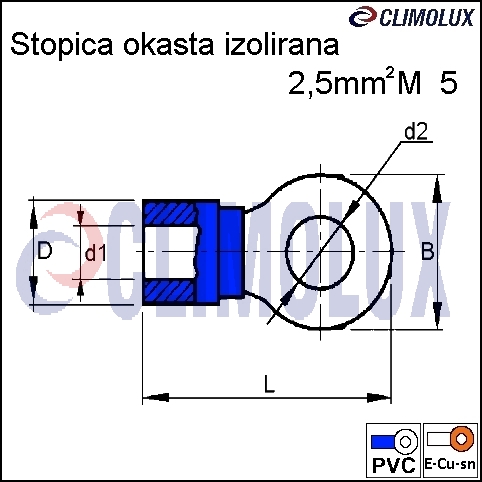

product code	insulated color	d1 (mm)	d2 (mm)	D (mm)	L (mm)	B (mm)	solid wire (mm2)	twisted wire (mm2)	flexible wire (mm2)
490121		2,3	5,3	6,1	23,4	9,4	2,5-4,0	1,0-2,5	1,0-2,5


- Minimum Order Quantity: 100 pieces

-ring terminai are made of tinned copper,
-Insulation of polyamide.
Temperature of the environment: -55 ° C to + 125 ° C.


Ring terminal type cable lugs are suitable for connecting wires of different types and cross sections.
The compounds were inseparable. During the merger should be taken that the material guide (copper, aluminum)ring treminal of the same material, so as to prevent harmful effects of the transition resistance and electrochemical potential difference, and thus overheating connection points.

The suggested crimping tool:
 492005 ; 492006 ; 492484
