PIR motion sensor, black - TM008C

11,59 €

 PIR motion sensor, black - TM008C

product code: 491833
The motion sensor is consisted of an electronic switch for operation of lamp holders, to illuminate various areas (industrial, public, commercial etc.) and a highly sensitive infrared sensor. If a living being comes into the sensing area, the equipment will operate the switched device (e.g. floodlight). The sensor can be adjusted both horizontally and vertically, according to the requirement of the user, to shape the sensing area. There is a relation between the motion direction and the sensitivity, shown on the enclosed figures. Operation can also be adjusted in function of the area illumination, from daylight to night-time operation.


-color : black

product
code
Detection
length

color

 491833120°< 10 lux10s do 4 minIP 44
max. 14 m
montage onn vertical wall black
Rated switchable power:



1.100 W
750 W
500 W
Note
The motion sensors are not suitable for switching luminaries with compensated and compact fluorescent lamps.

Tehnical data:
Rated voltage:
 220-240 V AC
Switchable power:
 1100 W (220-240 V AC incandescent lamp)
Power consumption:
 max. 0,45 W
Detected motion speed:
 0,6 ... 1,5 m/s
Mounting position:
 Na vertikalni zid
Ambient temperature
 -20 ˚C ... +40 ˚C
Relative humidity:
 max. 90 %



IR motion sensors
IR sensor consists of infrared sensor sensitivity and electronic switches with low-consumption, which helps to fit electrical appliances (npr.lighting body in various venues) in the industry, residential and commercial buildings. If the sensor area living being, integrates seamlessly connected load (reflektor). It can be adjusted both horizontally and vertically according to the user's needs and achieve the sensing area.

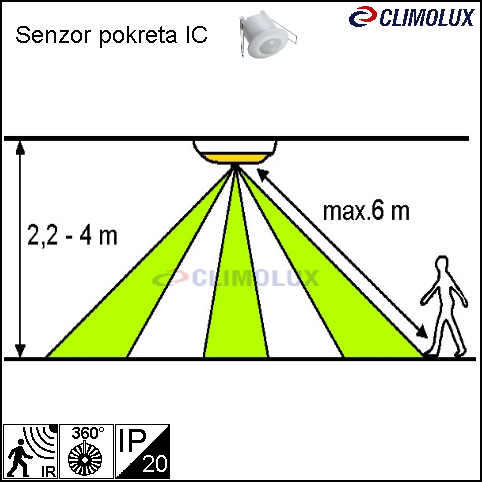

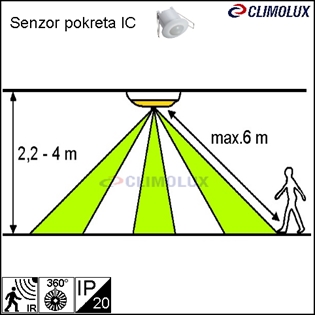

There is a relation between the motion and sensitivity, as shown on the enclosed drawings.
Depending on the ambient illumination can be changed mode from day to night.
The sensors are not suitable for switching fluorescent tubes with compensation or lighting with fluorescent tubes kompakntim.

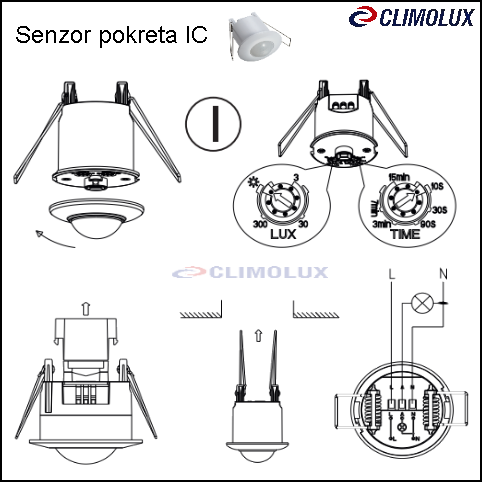

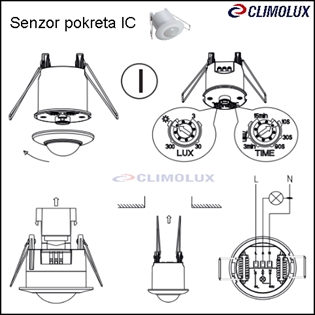

Types of IR motion sensors: -IC sensor montage on vertical or horizontal wall -IC sensor for ceiling-mounted built-in sensors
