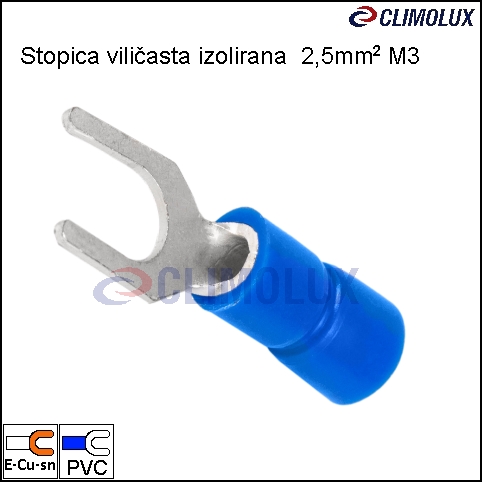

Insulated fork terminal 2,5mm2 M3 , blue

0,06 €

Insulated fork terminal  2,5mm2 M3 , blue

product code: 490155

product
code

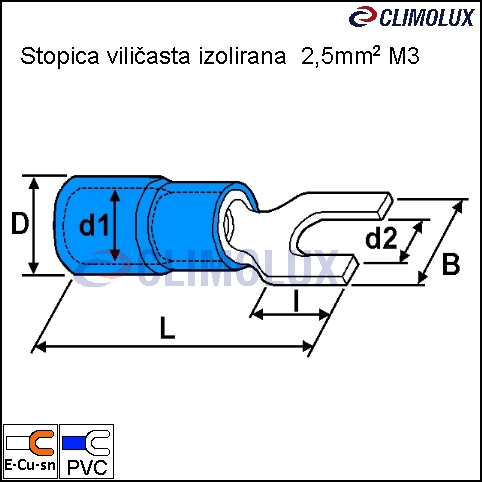

d1
(mm)
d2
(mm)
D
(mm)
L
(mm)
l
(mm)
B
(mm)
 490155
2,3
3,6
6,1
22,7
6,6
6,2
 2,5 - 4
1,5 - 2,5
1,5 - 2,5


- Minimum Order Quantity:  100 pieces



Fork terminal type cable lugs are suitable for connecting wires of different types and cross sections.
The compounds were inseparable. During the merger should be taken that the material guide (copper, aluminum)ring treminal of the same material, so as to prevent harmful effects of the transition resistance and electrochemical potential difference, and thus
overheating connection points.


The suggested crimping tool :

-492005-KSI9006,   492006-KSI9006R492484-KSI9006RS,   492008-KSI35LYC,
